VFD Drives: How Variable Frequency Drives Save Energy in Industrial Motors

What Is a VFD?

A Variable Frequency Drive (VFD) — also called a Variable Speed Drive (VSD) or inverter drive — is a power electronics device that controls the speed and torque of an AC induction motor by varying the frequency and voltage of its power supply.

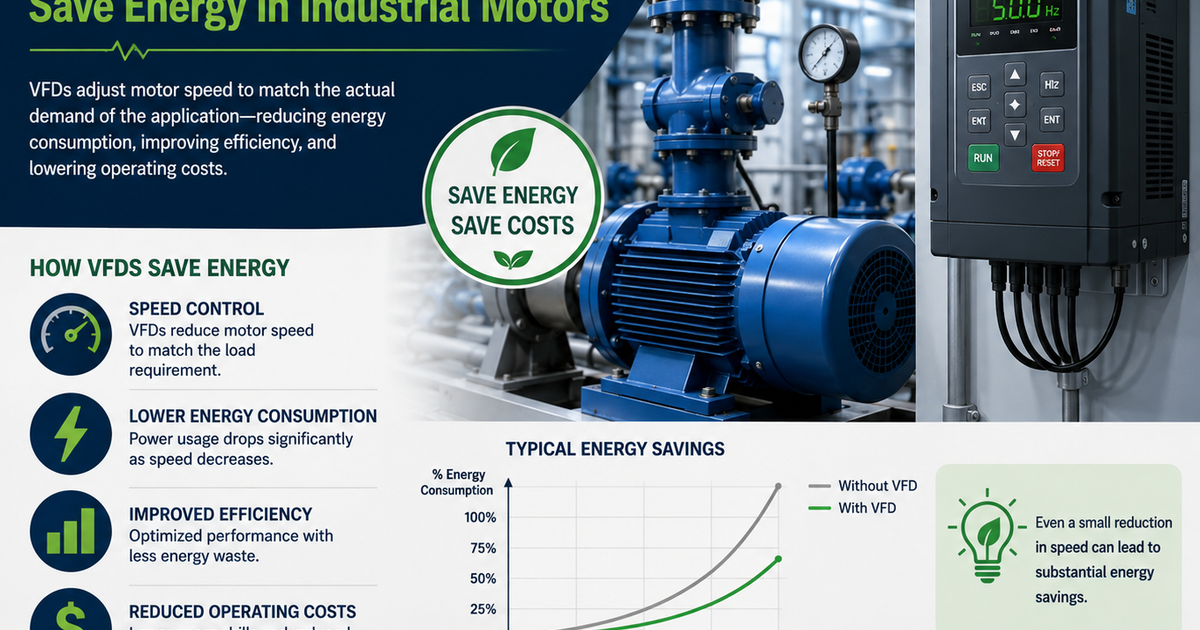

Why Speed Control Saves So Much Energy

For centrifugal loads (pumps, fans, blowers), power consumption follows the Affinity Laws: reducing speed by just 20% cuts power demand by nearly 50%. A pump running at 80% speed uses only 51% of the power compared to full speed.

Key Applications

• HVAC Systems: Chiller pumps, cooling tower fans, AHU fans — constant speed is rarely needed.
• Water & Wastewater: Booster pumps, submersible pumps — match flow to demand, not maximum.
• Conveyors & Material Handling: Smooth start/stop reduces mechanical stress and gearbox wear.
• Compressors: Eliminate pressure overshoot and idle power consumption.
• Textile & Paper Mills: Precise speed control improves product quality.

Additional Benefits Beyond Energy Saving

• Soft start — eliminates inrush current (6–8× FLA on DOL start).
• Reduced mechanical wear — smoother acceleration extends motor and coupling life.
• Built-in protection — overcurrent, overvoltage, phase loss, and thermal protection.
• Process control — integrate with PLCs and SCADA via Modbus, Profibus, or Ethernet.

Selecting the Right VFD

Match the VFD's continuous current rating to the motor's full load amperes (FLA) — not kW rating. For pumps and fans select a 'normal duty' rating; for conveyors and compressors with high starting torque, select 'heavy duty'. Always derate in high-ambient or high-altitude installations.

Conclusion

A VFD is one of the fastest-payback electrical investments available — typical ROI in 12–24 months on large pump/fan applications. TesniQ supplies VFDs from leading brands in 0.4kW to 630kW ratings. Contact us for selection support and commissioning.
