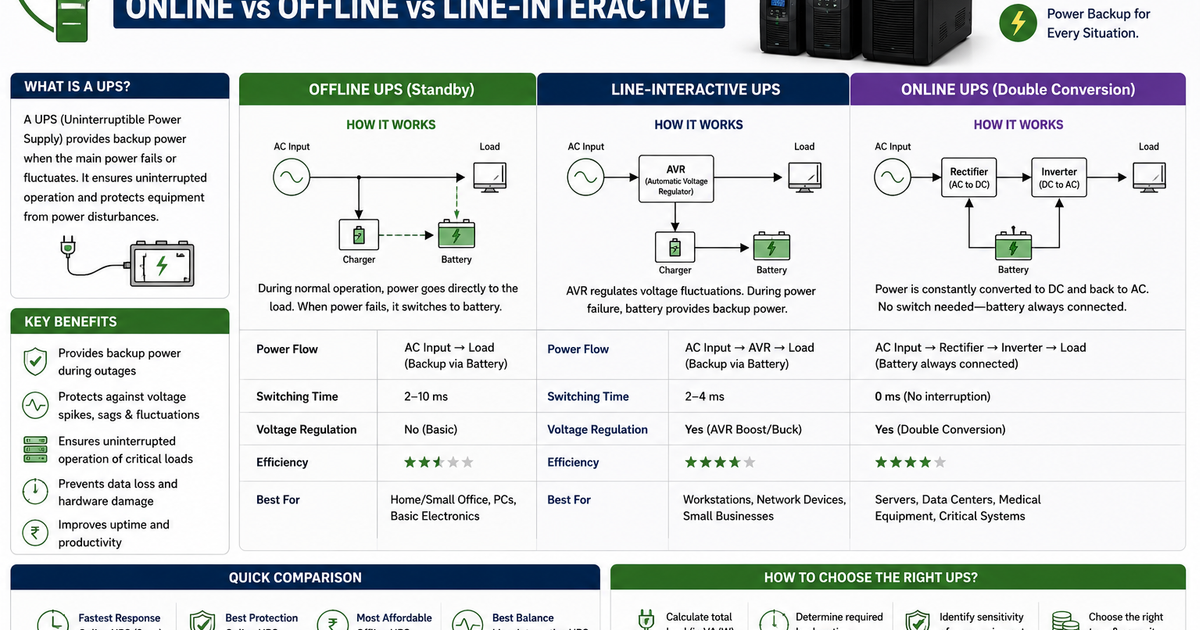

Understanding UPS Systems: Online vs Offline vs Line-Interactive

Why UPS Topology Matters

Choosing the wrong UPS topology is one of the most common — and costly — mistakes in power protection. An offline UPS that costs half as much as an online unit can still allow a voltage spike to reach sensitive equipment during the switchover delay.

Offline / Standby UPS

The simplest and cheapest type. Mains power passes directly to the load; the inverter only activates on failure. Transfer time: 4–10ms. Suitable for basic desktop PCs and non-critical loads. Not recommended for servers, medical equipment, or industrial PLCs.

Line-Interactive UPS

Adds an AVR (Automatic Voltage Regulator) to handle minor fluctuations without switching to battery. Transfer time: 2–4ms. Good balance of cost and protection for small offices, networking equipment, and workstations.

Online Double-Conversion UPS

The gold standard. Mains power is continuously converted to DC and back to AC — the load always runs off the inverter. Zero transfer time. Provides complete isolation from all power quality problems. Required for data centers, server rooms, medical imaging, and CNC machines.

Quick Selection Guide

• Home PC or basic office: Offline / Standby (600VA–1kVA).
• Small server / network rack: Line-Interactive (1kVA–3kVA).
• Data center / hospital / industrial: Online Double-Conversion (3kVA–500kVA).

Conclusion

Match the topology to the criticality of the load — not just the budget. TesniQ stocks all three types and can help size the right unit based on your load profile and runtime requirement.
